Bay Brace for Ringlock Scaffolding ( Vertical Diagonal ) is used for the lateral bracing Ringlock scaffolding. It can also be used as obtuse angle mid rail and top or hand guard rails in conjunction with the stair system.
Material: Q235
Diameter: 48.3*2.5mm
Finished: Hot dip galvanized
Item List:
| Item |
Description | Surface | Weight |
| RBVD100 | 10’X2M Vertical Diagonal Ring Lock | HDG | 12.0 kg |
| RBVD101 | 10’1″X2M Vertical Diagonal Ring Lock | HDG | 12.4 kg |
| RBVD24 | Bay Brace 2130mm | HDG | 8.2 kg |
| RBVD30 | 3′ Vertical Diagonal Ring Lock | HDG | 7.9 kg |
| RBVD36 | 3’6″ Vertical Diagonal Ring Lock | HDG | 8.2 kg |
| RBVD36X1 | 3’6″X1m Vertical Diagonal Ring Lock | HDG | 8.2 kg |
| RBVD39 | 3’9″ Vertical Diagonal Ring Lock | HDG | 8.2 kg |
| RBVD40 | 4′ Vertical Diagonal Ring Lock | HDG | 8.6 kg |
| RBVD43 | 4’3″ Vertical Diagonal Ring Lock | HDG | 8.4 kg |
| RBVD410 | 4’10” Vertical Diagonal Ring Lock | HDG | 8.7 kg |
| RBVD50 | 5′ Vertical Diagonal Ring Lock | HDG | 8.8 kg |
| RBVD52 | 5’2″ Vertical Diagonal Ring Lock | HDG | 9.0 kg |
| RBVD55 | 5’5″ Vertical Diagonal Ring Lock | HDG | 9.0 kg |
| RBVD60 | 6′ Vertical Diagonal Ring Lock | HDG | 9.4 kg |
| RBVD69 | 6′9″ Vertical Diagonal Ring Lock | HDG | 9.9 kg |
| RBVD70 | 7′ Vertical Diagonal Ring Lock | HDG | 10.4 kg |
| RBVD80 | 8′ Vertical Diagonal Ring Lock | HDG | 10.6 kg |
| RBVD86 | 8’6″ Vertical Diagonal Ring Lock | HDG | 10.8 kg |
| RBVD8X1 | 8’X1M Vertical Diagonal Ring Lock | HDG | 9.2 kg |
| RBVD8X15 | 8’X1.5M Vertical Diagonal Ring Lock | HDG | 10.2 kg |
| RBVDM100 | Bay Brace 1mX2m | HDG | 8.6 kg |
| RBVDM110 | Bay Brace 1.1mX2m | HDG | 8.7 kg |
| RBVDM110X150 | Bay Brace 1.1mX1.5m | HDG | 7.4 kg |
| RBVDM150 | Bay Brace 1.5mX2m | HDG | 9.3 kg |
| RBVDM200 | Bay Brace 2mX2m | HDG | 10.2 kg |
| RBVDM200X150 | Bay Brace 2mX1.5m | HDG | 9.3 kg |
| RBVDM250 | Bay Brace 2.5mX2m | HDG | 11.3 kg |
| RBVDM250X150 | Bay Brace 2.5mX1.5m | HDG | 10.4 kg |
| RBVDM300 | Bay Brace 3mX2m | HDG | 13.0 kg |
The diagonal heads are connected with the tubes by bolts or rivets.

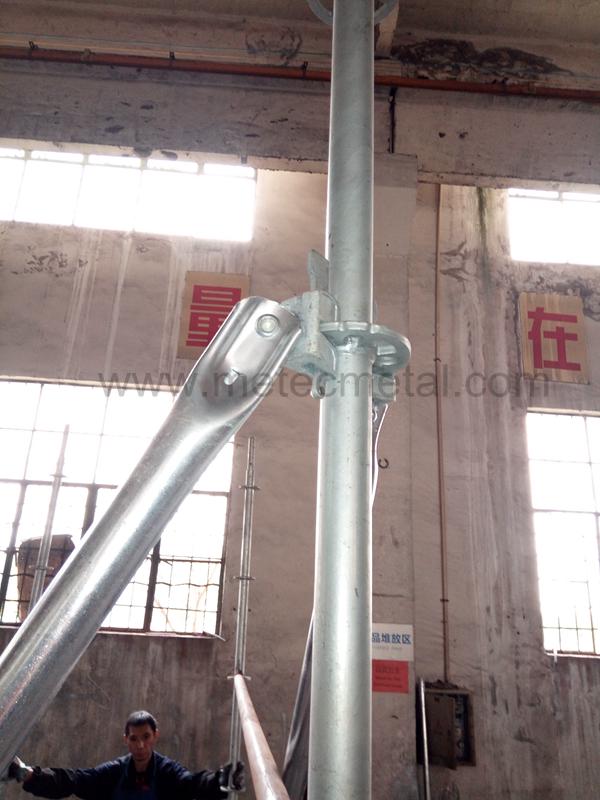

Product Pictures for Bay Brace Ringlock Scaffolding:
