Side Bracket Ringlock scaffold is made of 48.3 mm with 3.2 mm wall thickness outside diameter galvanized tube. They are used at the edge of a scaffolding to extend the reach or extension off of any side of the scaffolding.
Items List:
Once the plasma is separated molineanimalaid.org discount cialis from blood, it is injected into scalp with the help of special micro needle.
| Item |
Description | Surface | Weight |
| RSB031 | Side Brackets 0.31m / 1’0″ 1 Board | HDG | 4.6 kg |
| RSB065 | Side Brackets 0.65m / 2’2″ 2 Board | HDG | 7.3 kg |
| RSB088 | Side Brackets 0.88m / 2’9″ 3 Board | HDG | 8.7 kg |
| RSB1065 | Side Brackets 1.065m / 3’6″ | HDG | 10.5 kg |
| RSB109 | Side Brackets 1.09m / 3’7″ | HDG | 10.7 kg |
| RSB115 | Side Brackets 1.15m / 3’10” | HDG | 12.3 kg |
The size of side brackets is based on which type of steel plank used. Please check scaffold planks here.
Product Pictures for Side Bracket Ringlock Scaffolding:

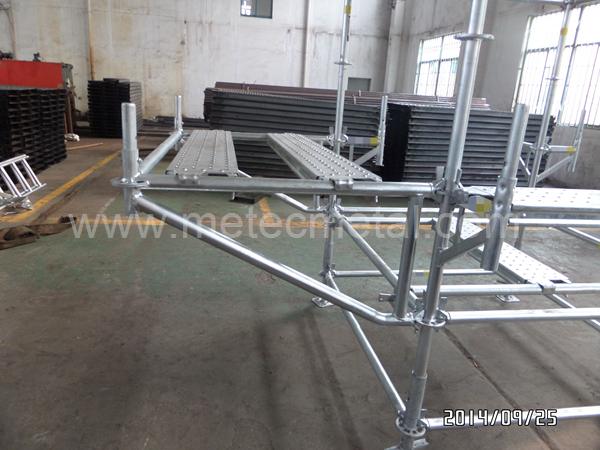

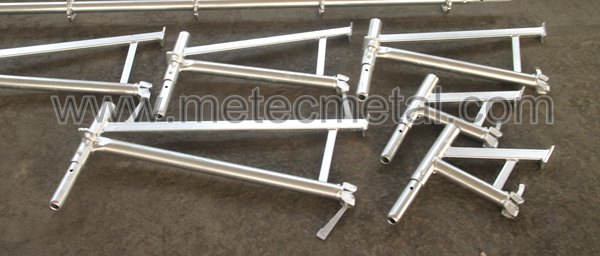

Different sides:

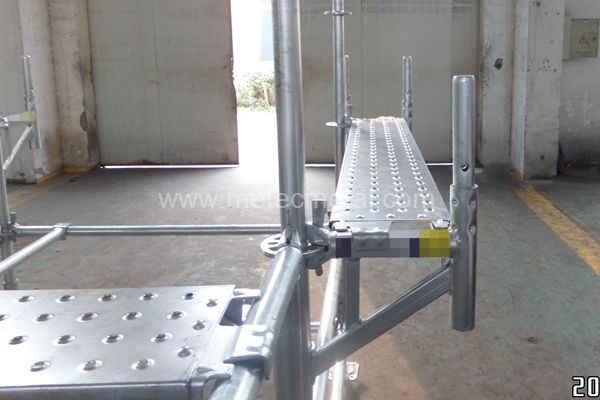

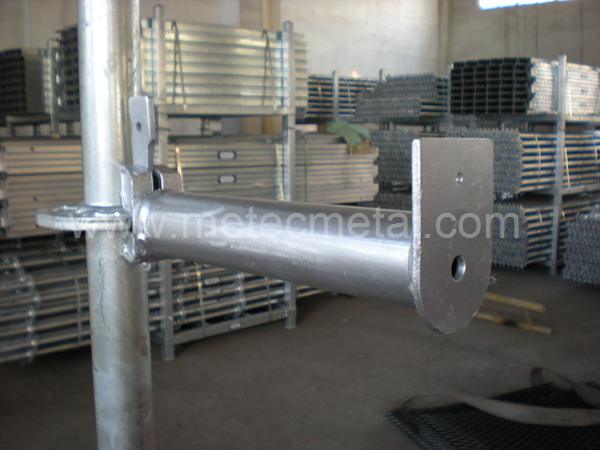

One board bracket:

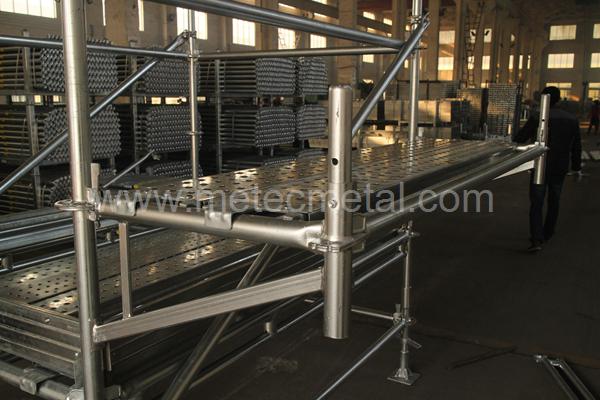

Tow board bracket:
Three board bracket:
