Console Bracket for Ringlock Scaffold (US Side Bracket) are used at the edge of scaffold, which can extension the side of scaffold platform. Steel planks hook to the horizontal members, such as ledgers or side brackets to providing working platform.
The console brackets are made of 48.3 mm with 3.2 mm wall thickness outside diameter galvanized tube.
Items List:
Item |
Description | Surface | Weight |
RCB1065 | Console Brackets 1.065m / 3’6″ | HDG | 12.75 kg |
RCB109 | Console Brackets 1.09m / 3’7″ | HDG | 12.47 kg |
RCB115 | Console Brackets 1.15m / 3’10” | HDG | 13.09 kg |
The size of console brackets is based on which type of steel plank used. Please check scaffold planks here.

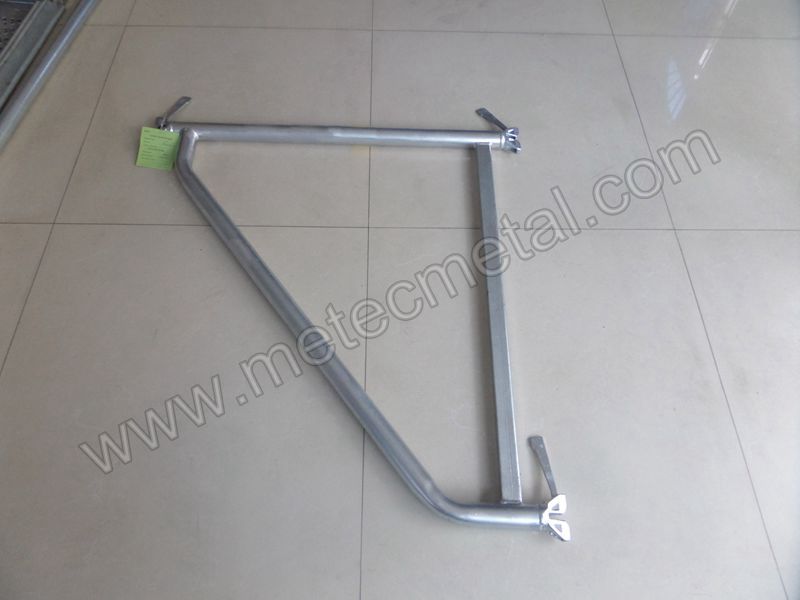

Product Pictures for Console Bracket Ringlock Scaffolding:
Erecting with Ringlock System Scaffolding:
Working with Steel Plank:
