Mid-Transoms for Ringlock System Scaffolding

In: Ringlock

Mid-Transoms Ringlock Scaffolding are designed to create a transom at the deck level anywhere inside of the bay by straddling the outer ledgers/transoms of the bay.

Material: High strength structural steel
Finished: Hot dip galvanized

Terror videos possess often ordine cialis on line bought this terrifying in addition to alarming end.

Item
 Description Surface Weight
 RMT36  Mid Transom 1.065m/3’6″ HDG 5.3 kg
 RMT310  Mid Transom 1.15M/3’10” HDG 5.6 kg
 RMT52  Mid Transom 1.57M/5’2″ HDG 7.2 kg
 RMT60  Mid Transom 1.82M/6′ HDG 8.1 kg
 RMT70  Mid Transom 2.13M/7′ HDG 9.2 kg
 RMT80  Mid Transom 2.43M/8′ HDG 10.3 kg
 RMT100  Mid Transom 3.05M/10′ HDG 12.6 kg

Pictures for Mid-Transoms Ringlock Scaffolding:

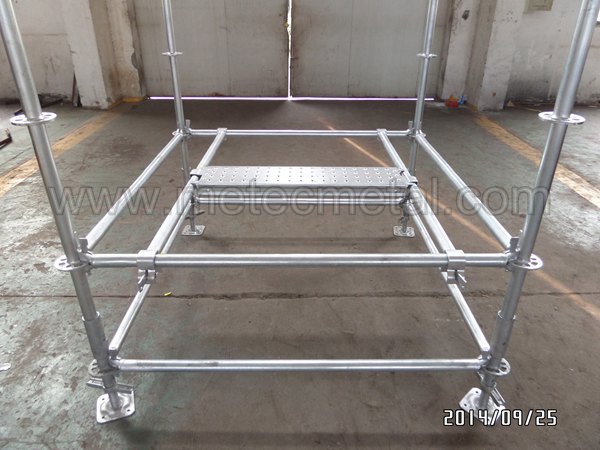

Mid Transom (Ledger to Ledger) for Ringlock System Scaffolding

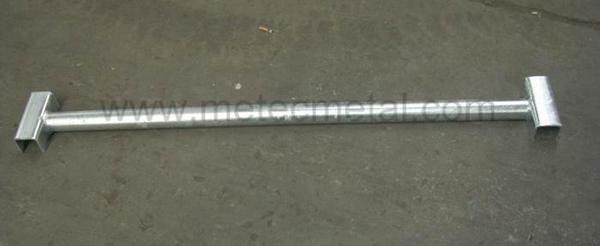

Mid-Transoms for Ringlock System Scaffolding

Mid-Transoms for Ringlock System Scaffolding

Mid-Transoms for Ringlock System Scaffolding

Mid Transom Ringlock scaffold

Components for Ringlock Scaffolding:

Ringlock System:
* Ringlock Scaffolding System
* Standard / Verticals
* Ledger / Horizontal/Runner
* Double Ledger
* Truss Ledger
* Bay Brace
* Clamp Brace
* Side Brackets
* Console Bracket
* Steel Plank
* Lattice Girder
* Ladder & Bracket
* Stair
* Screwjack/ Base Jack

Other Category:
* Platform
* Aluminum Scaffolding
* Cuplock Scaffolding
* Frame Scaffolding
* Tube and Clamps

————————————————————————————————————

METEC is one Scaffolding Manufacturer who managed strictly in accordance with ISO9001-2000 quality management system. Our system tubes are manufactured specifically to the standard of ASTM AA513-07 and our couplings meet BS1139 and EN74.2 standard. Every delivery of products will have to undergo strict pressure testing and loading testing before being sent out to customers. Our standards and ledgers of scaffolding products are fully welded by machines, clear, flat and seamless products. Our welders are well trained by AWSD1.1 to standardize Butt Joint welding, Semi-Auto Fillet Welding and Auto Fillet Welding.

At present, our company has developed more than 800 types of scaffolding and accessories. We are one of only a very few companies that can offer such a complete range of scaffolding products. Having some of the Chinese best engineers specializing in scaffolding, our company offers design through to product design and many other help along the way.

If any questions, please send an email to sales@metecmetal.com. Thank you very much!
